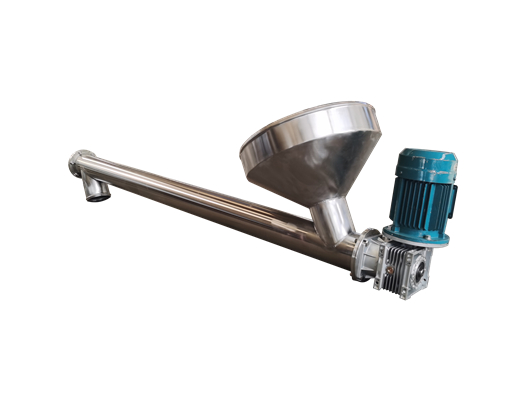

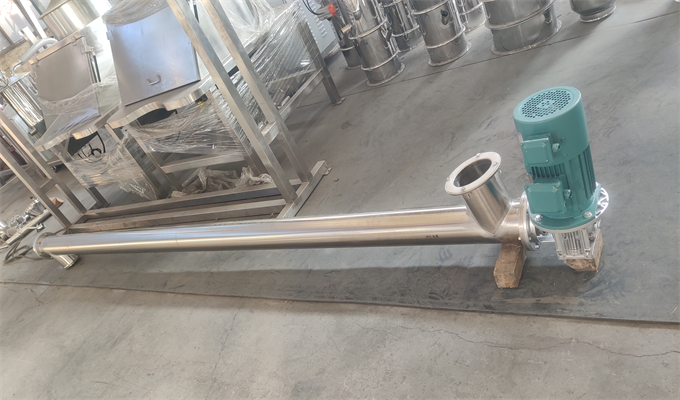

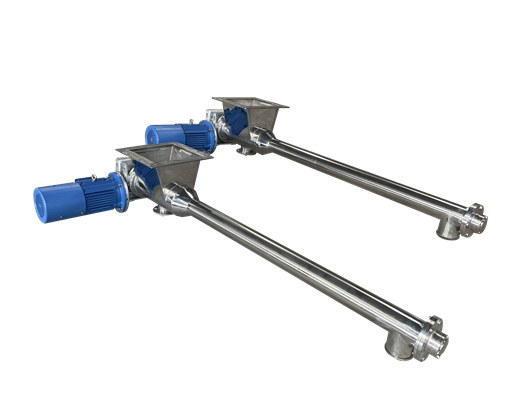

Horizontal Screw Conveyor

Horizontal screw conveyor is a device that transports materials from one point to another. It is widely used in industries such as chemical, building materials, metallurgy, food, medicine, etc. It can efficiently and stably transport various powder, granular, and block materials, and has a certain degree of self unloading function, convenient use, and low cost.

Description

The screw conveyor is mainly used for conveying cement and fly ash materials in concrete mixing stations. It is also suitable for chemical, metallurgical, grain processing, warehousing, and other places. The screw body of this machine has a small diameter, high speed, large conveying capacity, high accuracy, and good conveying conditions. The driving device adopts a gear reducer, which has high torque, low noise, no oil leakage, and long service life. The conveying shell is made of high-quality seamless pipe and flange connection. The overall rigidity of the equipment is good, with a large load-bearing capacity. During transportation, it can be continuously transported whether it is horizontal or at a large inclination angle, and the working position and state can be freely selected. It is easy to disassemble and repair, safe and reliable.

Parameters

Model			LS100	LS120	LS140	LS160	LS200	LS250	LS300	LS400
Diameter of screw(mm）			90	115	135	163	185	237	285	362
Speed of main axis(r/min)			300	300	300	308	260	200	170	170
Diameter of main case(mm)			108	133	159	194	219	273	325	402
Max capacity (t/h)			7	10	15	25	40	60	90	120
Max conveying length(m)			8	10	12	15	18	25	25	25
Working angle(degree)			0~60	0~60	0~60	0~60	0~60	0~60	0~60	0~60
Motor	Model	Length≤7M	Y90S-4	Y100L1-4	Y100L2-4	Y132S-4	Y132M-4	Y160L-6	Y180M-4	Y180M-4
	Power(kw)	Length≤7M	1.1	2.2	3	5.5	7.5	11	18.5	18.5
	Model	Length≥7M	Y100L1-4	Y100L2-4	Y112M-4	Y132M-4	Y160M-4	Y180L-6	Y180L-4	Y180L-4
	Power(kw)	Length≥7M	2.2	3	4	7.5	11	15	22	22

Detail

High efficiency transportation: A new type of suspended intermediate suspension bearing frame is adopted, which increases the space for material transportation and reduces logistics resistance. In addition, small diameter, high speed, variable pitch and other designs ensure smooth, fast and uniform material delivery. Random arrangement: The shell is made of high-quality seamless steel pipes, which are connected to each section as a whole through flanges. It can be continuously transported whether it is horizontal or at a large angle. It can be directly connected and fixed with supporting equipment without the need for foundation, making full use of space. It is very convenient to move and disassemble. Diversified connection: The inlet and outlet can be connected by flanges, cloth bags, cloth bag suspension rods, universal interfaces, and other forms. Reliable sealing: An anti-seepage device is installed at the connection of the shell pipe, and the process holes have been carefully improved to avoid material blockage and blockage caused by cement agglomeration in the pipe due to rainwater infiltration. No need to add oil: Due to the use of novel intermediate bearing materials, it can reduce friction, wear resistance, and self-lubricate. Even if used for a long time, there is no need to add lubricating oil, which can avoid the side effects of grease and cement mixing on the shaft sleeve and shaft.

Motor

Horizontal Screw Conveyor

Screw Blade

Material

Application
